1. Reinforced heavy-duty drive axle meets the needs of high-intensity and high-load operation.
2. Standardly equipped with Lugong steel engineering tyres, wear-resistant and reliable, applicable to a variety of harsh working conditions, efficient operation.

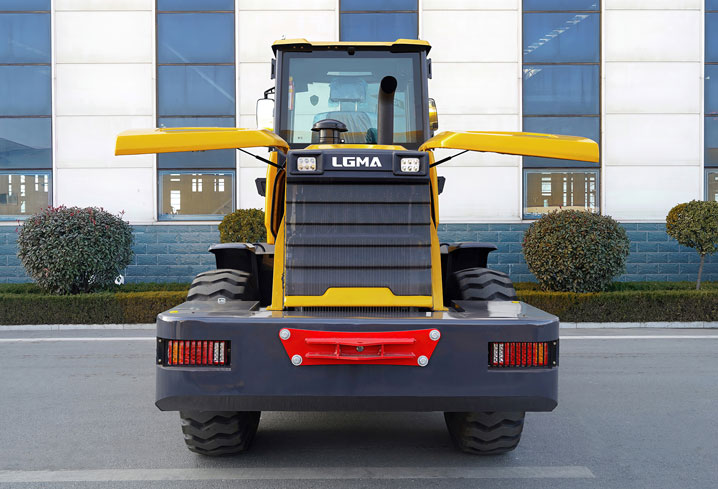

3. Streamlined appearance, overall front flip hood, wide field of vision, large space for comfortable operation and convenient maintenance.
4. 3.8m, 4.5m and 5m unloading height working device and a variety of attachments can be selected to meet different working conditions.
5. People-oriented design, according to the ergonomics of the new optimisation design of the new generation of cab, the new skeleton structure (rectangular profile frame), anti-tip anti-falling objects to ensure safety, reduce fatigue, to create an excellent operating environment; can be equipped with hydraulic pilot, air-conditioning, reversing video, etc., comfortable operation, driving safety.
Product Features
Product parameter
Main Technical Parameters
| Overall length (mm) | 6990 |
| Overall height (mm) | 3000 |
| Tire outer width (mm) | 2150 |
| Outer width of bucket (mm) | 2480 |
| Unloading height (mm) | 3600 |
| Unloading distance (mm) | 850 |
| Maximum height on the bucket (mm) | 5200 |
| Bucket lower pin shaft height (mm) | 4330 |
| Front turning radius (mm) | 6800 |
| Rear turning radius (mm) | 6000 |
| Minimum ground clearance (mm) | 430 |
| Wheel base (mm) | 2800 |
| Track width (mm) | 1690 |
| Rated load capacity (kg) | 2800 |
| Whole machine weight (kg) | 8200 |
| Standard bucket size (mm) | 2400*1040*680 |
| Standard bucket capacity (m³) | 1.5-1.8 |
| Engine | Deutz6105 Turbo |
| Ratedpower (kW) | 92 |
| Emission | Stage-2 |
| Drive axle model | LG2.9T Large wheel side axle |
| Tire model | 17.5-25 |
