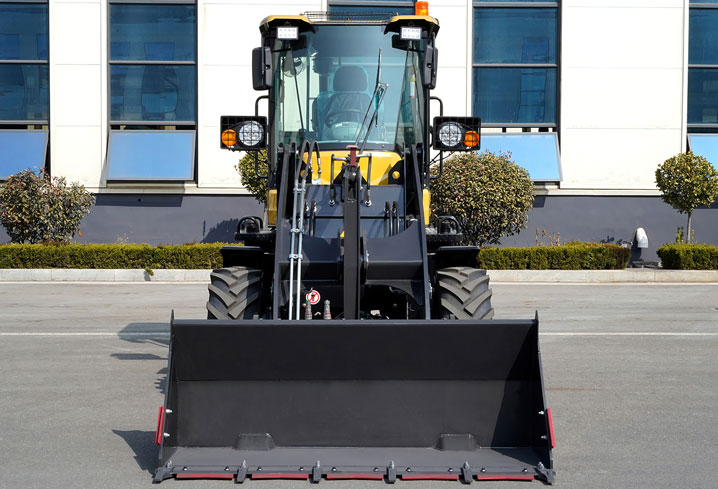

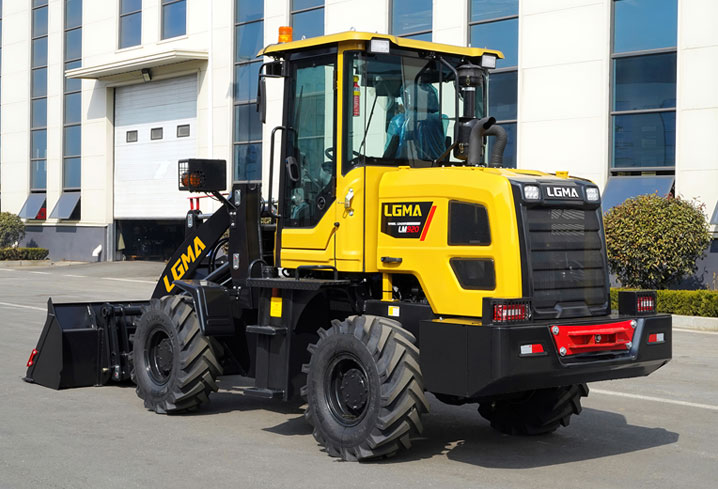

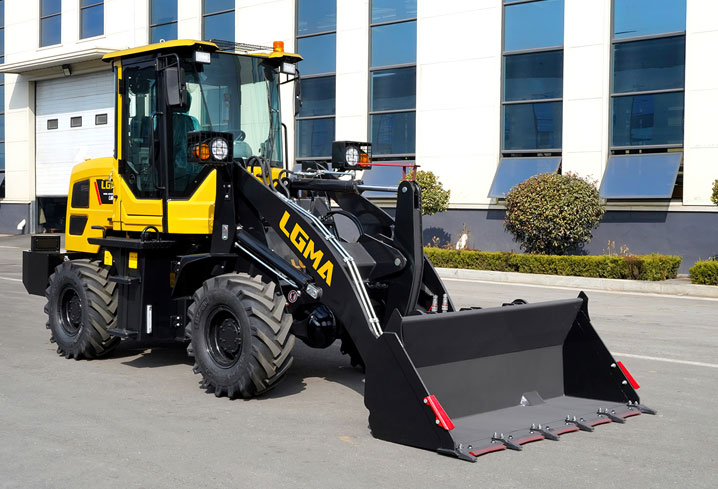

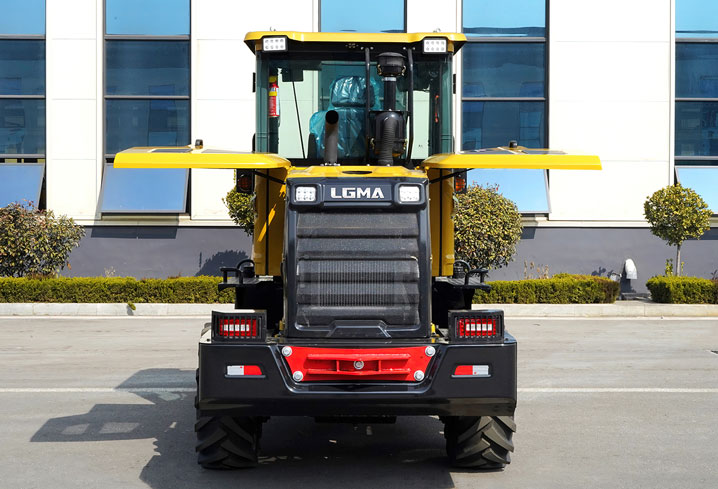

1.LM series loader adopts new design module, integral gearbox, more compact design.
2.Electronic control gear shift technology. The cab has passed double S certification (FOPS and ROPS), and the rear hood adopts frame structure.
3.Tyres with cedar leaf design, more suitable for complex road conditions.
4.New quick-change device. The new quick-change device can replace many kinds of attachments and improve the rising force and operating weight of the whole vehicle.
| Overall length (mm) | 5670 |
| Overall height (mm) | 2680 |
| Tire outer width (mm) | 1800 |
| Outer width of bucket (mm) | 1950 |
| Unloading height (mm) | 3200 |
| Unloading distance (mm) | 800 |
| Maximum height on the bucket (mm) | 4475 |
| Bucket lower pin shaft height (mm) | 3750 |
| Front turning radius (mm) | 5000 |
| Rear turning radius (mm) | 4200 |
| Minimum ground clearance (mm) | 250 |
| Wheel base (mm) | 2230 |
| Track width (mm) | 1490 |
| Rated load capacity (kg) | 1600 |
| Whole machine weight (kg) | 3800 |
| Standard bucket size (mm) | 1800 X 900 X 470 |
| Standard bucket capacity (m³) | 0.7 |
| Engine | Yunnei 490 |
| Ratedpower (kW) | 37 |
| Emission | Stage-2 |
| Drive axle model | LG1.5T Small wheel side axle |
| Tire model | 20.5-16 |
