Construction Machinery

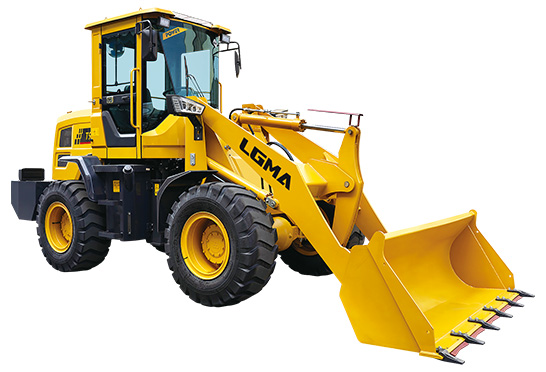

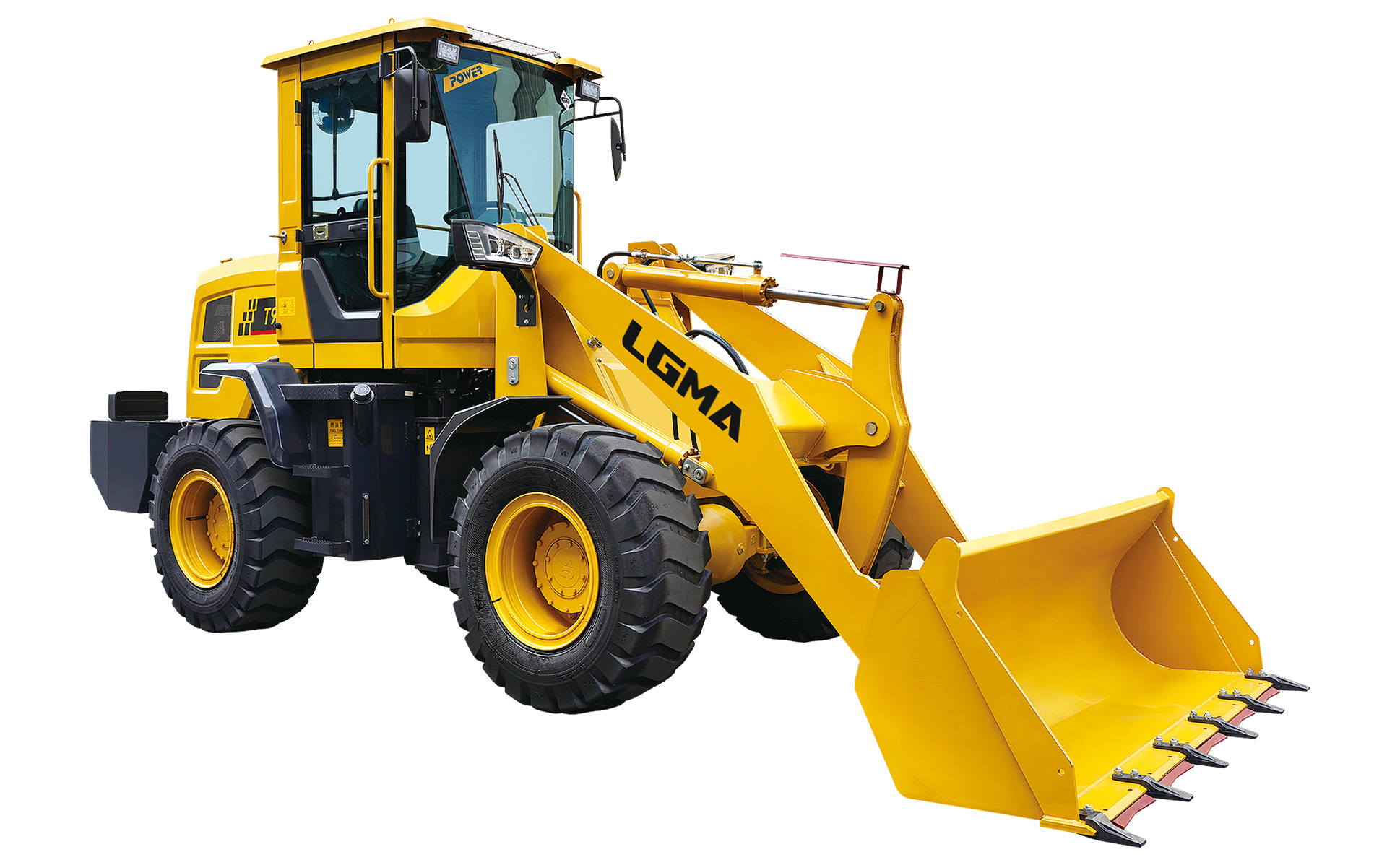

T936 Wheel Loader
T936 Wheel Loader

T936 Wheel Loader

T series 1.8TON Compact Wheel loader

0.9m³
1800kg
60kw

Product Feature

1.The shell is all metal, no plastic material! High temperature resistance, easier to dissipate heat.

2.Adopt large wheel side to reduce speed, increase speed and high torque without losing torque.Cooperate with Lugong brand gearbox to achieve high performance and low fuel consumption.

3.The fuselage adopts the drawing and stamping process, the appearance is curved, the overall appearance is beautiful, the internal space is large, and the structure is stronger.

4.T series wheel loaders can be equipped with a variety of attachments according to different operating environments and types of work requirements, such as grain buckets, wooden forks, pitch forks, cross-country forks, pallet forks, etc.

Product parameter

Main Technical Parameters
Overall length (mm) 5870
Overall height (mm) 2750
Tire outer width (mm) 1960
Outer width of bucket (mm) 2170
Unloading height (mm) 3500
Unloading distance (mm) 570
Maximum height on the bucket (mm) 4750
Bucket lower pin shaft height (mm) 4100
Front turning radius (mm) 5600
Rear turning radius (mm) 4800
Minimum ground clearance (mm) 300
Wheel base (mm) 2330
Track width (mm) 1570
Rated load capacity (kg) 1800
Whole machine weight (kg) 4500
Standard bucket size (mm) 2100*920*470
Standard bucket capacity (m³) 0.9
Engine HuaFeng4102
Ratedpower (kW) 60
Emission Stage-2
Drive axle model LG2.0T Medium wheel side axle
Tire model 16/70-20
